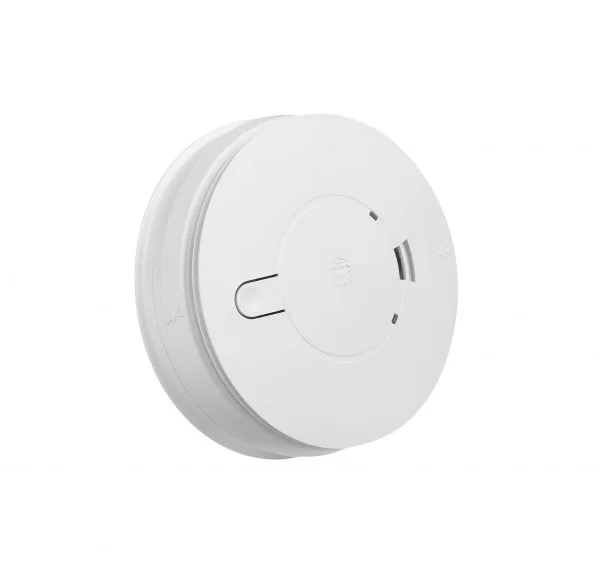

Photoelectric 230 Volt Smoke Alarm with 9 Volt Alkaline battery

The EIB146e is a Photoelectric Smoke Alarm with 230V AC mains power supply with a replaceable Alkaline battery back-up.

EIB146e

The EIB146e is supplied with the Brooks Easi-fit™ base to facilitate quick and simple installation, combined with simple smoke alarm head removal and replacement. The Easi-fit™ base automatically connects both mains power and battery as the smoke alarm head slides on.

The EIB146e may operate as a standalone Alarm or may be interconnected to other Alarms via a wired or wireless system. For a wireless system, each Alarm must be fitted with an EIB168RC RadioLINK™ base. When interconnected, all alarms in the system will sound when smoke is detected.

The Alarm is fitted with a Test / Silence button to facilitate frequent testing of your Alarm and System. The Silence function allows the Alarm / System to be silenced in the case of a false / nuisance alarm, e.g. cooking fumes.

The memory feature allows an Alarm that has previously activated to be easily identified (the red LED flashes twice every 40 seconds for 24 hours).

The Brooks Photoelectric Smoke Alarm has the following features:

  • High Performance Photoelectric Sensor
  • Remote test + control – wired & wireless
  • Integrated piezo-electrical sounder
  • Easi-fit™ base
  • Insect screen
  • Test/Silence button
  • Alarm Memory Feature
  • Low battery indication
  • Hardwire interconnect
  • Wireless interconnect when fitted with EIB168RC
  • Conforms to AS3786:2014 + A1:2015
  • 5-year guarantee
Model Number: EIB146e
Photoelectric:
Heat:
Ionisation:
Carbon Monoxide:
Mains Powered:
Battery Back-up: 9-volt Alkaline
Battery Powered:
Low Battery Warning Alert:
Test/Reset Button:
Interconnect Capability: Hardwire interconnection (up to 20 units or wireless interconnection 12 units via RF using the EIB168RC RadioLINK base)
Warranty: 5 year (limited) warranty
Approvals: AS3786: 2014
